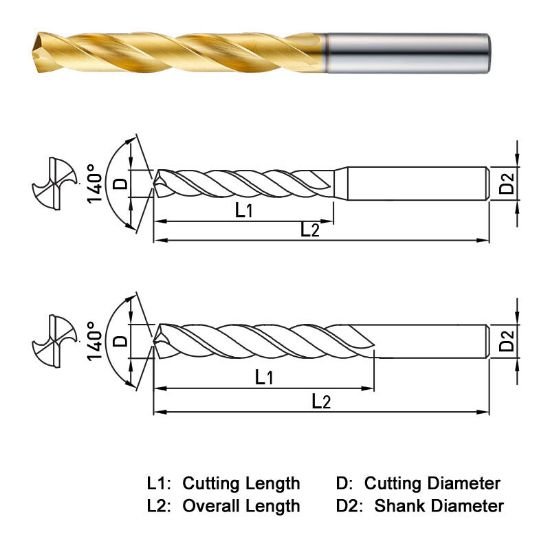

Picture of Widin NDPL120 12.00mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Widin NDPL120 12.00mm Dia 140° Point 2 Flute 5.5-7.5XD Drill Carbide Non Coolant

Part Number: WIDNDPL120
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$99.09
SKU: 1145443

Description

WIDIN NDPL120 Carbide Drill 12.00MM DIA 140° Point 2 Flute 5.5-7.5XD Drill Solid PVD
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.7244 120.00MM
Flute Length 3.1500 80.01MM
Dia Deep 5.5.0x Dia - 7.5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.4724 12.00MM
Tool Dia 0.4724 12.00MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4724 12.00MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron
Materials & Finish
Cutting Edge Mat Carbide
Coating PVD
Tool Material Carbide
