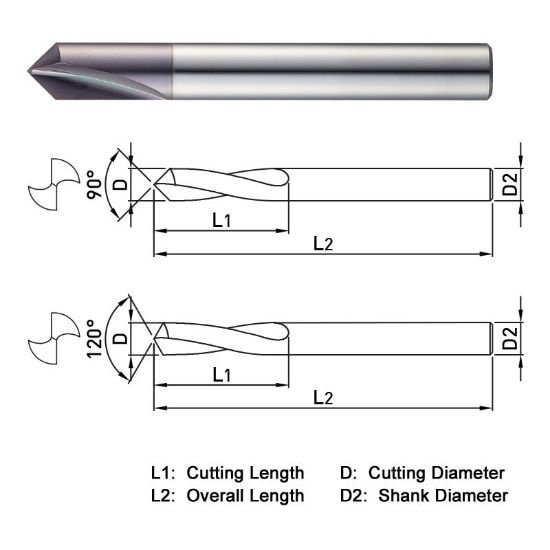

Picture of Widin LDS120L 12.00mm Dia 90° Point 2 Flute 2-3X Drill Carbide Non Coolant

Widin LDS120L 12.00mm Dia 90° Point 2 Flute 2-3X Drill Carbide Non Coolant

Part Number: WIDLDS120L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$140.33
SKU: 1142530

Description

WIDIN LDS120L Carbide Drill 12.00MM DIA 90° Point 2 Flute 2-3X Drill Solid TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.9055 150.00MM
Flute Length 0.9450 24.00MM
Dia Deep 2.0x Dia - 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.4724 12.00MM
Tool Dia 0.4724 12.00MM
Geometry & Angles
Included Angle 90°
Performance & Capacity
Cut Dia Min 0.4724 12.00MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Tool Material Carbide
