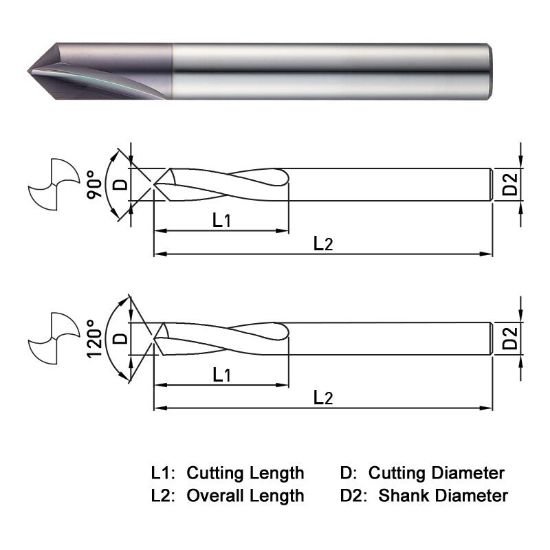

Picture of Widin LDS100L 10.00mm Dia 90° Point 2 Flute 2-3X Drill Carbide Non Coolant

Widin LDS100L 10.00mm Dia 90° Point 2 Flute 2-3X Drill Carbide Non Coolant

Part Number: WIDLDS100L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$118.61
SKU: 1142529

Description

WIDIN LDS100L Carbide Drill 10.00MM DIA 90° Point 2 Flute 2-3X Drill Solid TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.9055 150.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3937 10.00MM
Flute Length 0.9450 24.00MM
Dia Deep 2.0x Dia - 3.0x Dia
Geometry & Angles
Included Angle 90°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.3937 10.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
