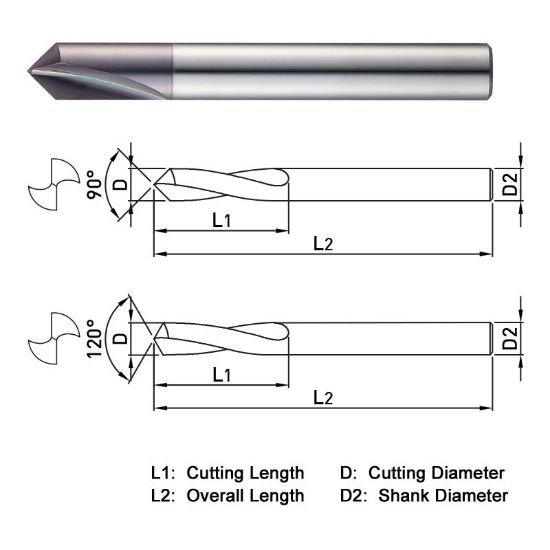

Picture of Widin LDS030L 3.00mm Dia 90° Point 2 Flute 2-3X Drill Carbide Non Coolant

Widin LDS030L 3.00mm Dia 90° Point 2 Flute 2-3X Drill Carbide Non Coolant

Part Number: WIDLDS030L
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$37.46
SKU: 1142525

Description

WIDIN LDS030L Carbide Drill 3.00MM DIA 90° Point 2 Flute 2-3X Drill Solid TiAlN
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.1181 3.00MM
Flute Length 0.3940 10.01MM
Dia Deep 2.0x Dia - 3.0x Dia
Geometry & Angles
Included Angle 90°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.1181 3.00MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
