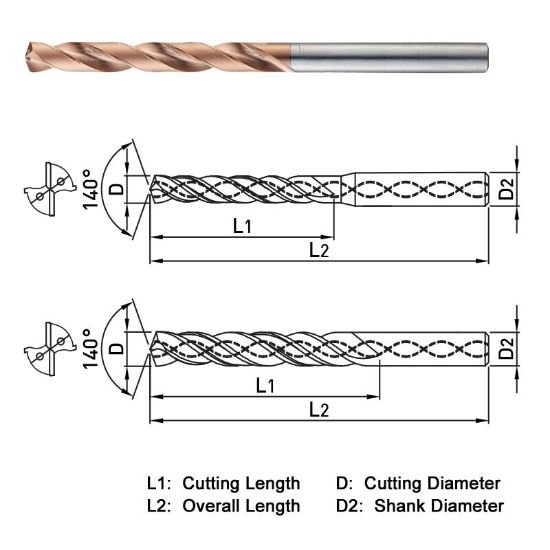

Picture of Widin HPI508125 12.50mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin HPI508125 12.50mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDHPI508125
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$285.06
SKU: 1141978

Description

WIDIN HPI508125 Carbide Drill 12.50MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 6.1024 155.00MM
Flute Length 3.5830 91.01MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5512 14.00MM
Tool Dia 0.4921 12.50MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4921 12.50MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
