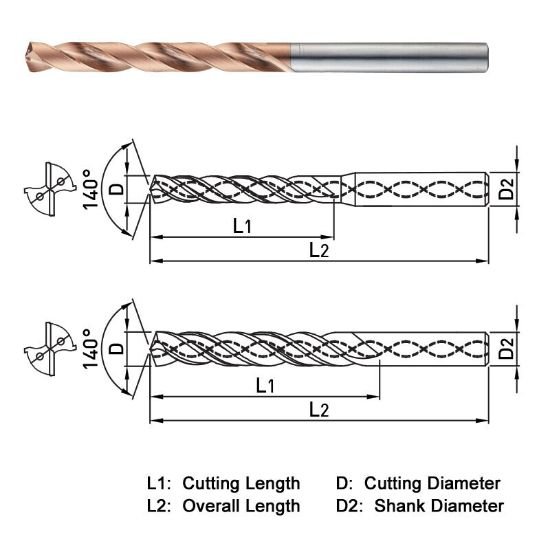

Picture of Widin HPI508099 9.90mm Dia 140° Point 2 Flute 8XD Drill

Widin HPI508099 9.90mm Dia 140° Point 2 Flute 8XD Drill

Part Number: WIDHPI508099

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: 1141934
Vendor: Sussex Tool and Supply
$257.29
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Carbide Drill
Made In USA No
Cutting Edge Definition Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Cutting Edge Material Carbide
Tool Material Carbide
Machine Side (Toolpost) CYLINDRICAL0.3937
Machine Side (Toolpost) Connection Type Cylindrical
Overall Length 4.8031 122.00MM
Shank Or Pilot Diameter 0.3937 10.00MM
Family Group Widin
Coolant Thru Thru Coolant
Coating TiAlN + HH
Mach Side Connection Size 0.3937 10.00MM
Tool Diameter 0.3898 9.90MM
Flutes Or Inserts 2
Type of Tool Drill
Included Angle 140°
Flute Length 2.6770 68.00MM
Cut Diameter Min 0.3898 9.90MM
Diameter Deep 8.0x Dia
