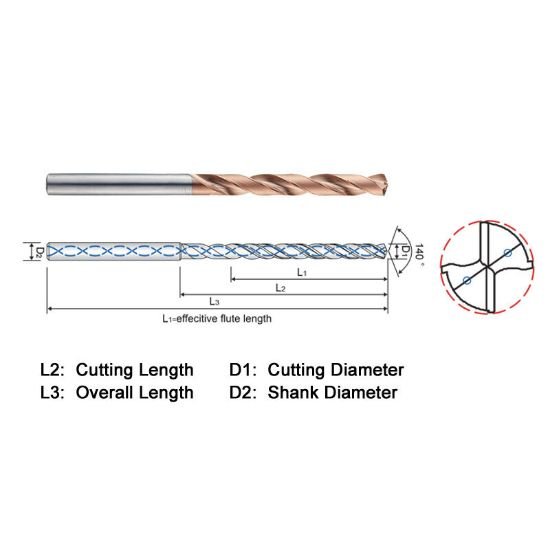

Picture of Widin HPI50805953N 5.953mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin HPI50805953N 5.953mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDHPI50805953N
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$84.63
SKU: 1141883

Description

WIDIN HPI50805953N Carbide Drill 5.953MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.7008 94.00MM
Flute Length 1.8740 47.60MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2362 6.00MM
Tool Dia 0.2344 5.95MM - 15/64
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2344 5.95MM - 15/64
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
