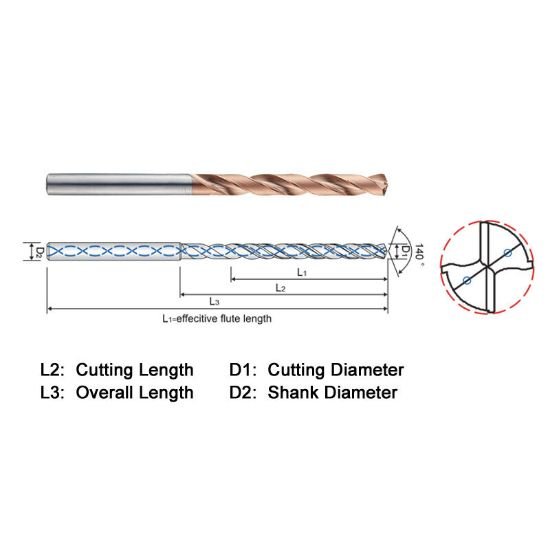

Picture of Widin HPI508048N 4.80mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin HPI508048N 4.80mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDHPI508048N
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$86.80
SKU: 1144271

Description

WIDIN HPI508048N Carbide Drill 4.80MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.4252 87.00MM
Flute Length 1.8740 47.60MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2362 6.00MM
Tool Dia 0.1890 4.80MM - #12
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1890 4.80MM - #12
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
