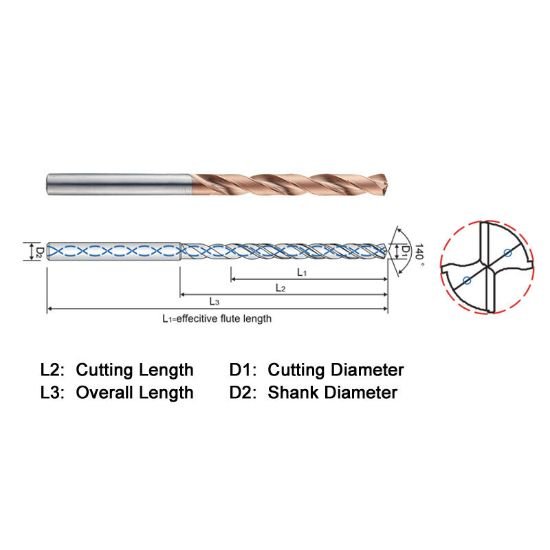

Picture of Widin HPI50804763N 4.763mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin HPI50804763N 4.763mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDHPI50804763N
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$84.63
SKU: 1141873

Description

WIDIN HPI50804763N Carbide Drill 4.763MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.7008 94.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1875 4.76MM - 3/16
Flute Length 1.8740 47.60MM
Dia Deep 8.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.1875 4.76MM - 3/16
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
