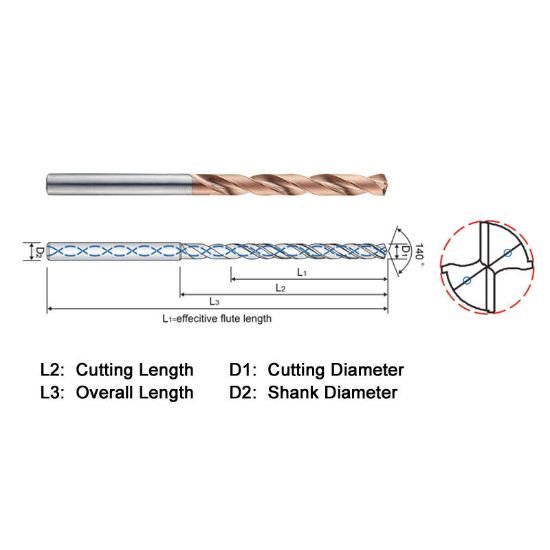

Picture of Widin HPI50803264N 3.264mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Widin HPI50803264N 3.264mm Dia 140° Point 2 Flute 8XD Drill Carbide Thru Coolant

Part Number: WIDHPI50803264N
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$84.63
SKU: 1141869

Description

WIDIN HPI50803264N Carbide Drill 3.264MM DIA 140° Point 2 Flute 8XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1496 80.00MM
Flute Length 1.4390 36.55MM
Dia Deep 8.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2362 6.00MM
Tool Dia 0.1285 3.26MM - #30
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1285 3.26MM - #30
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
