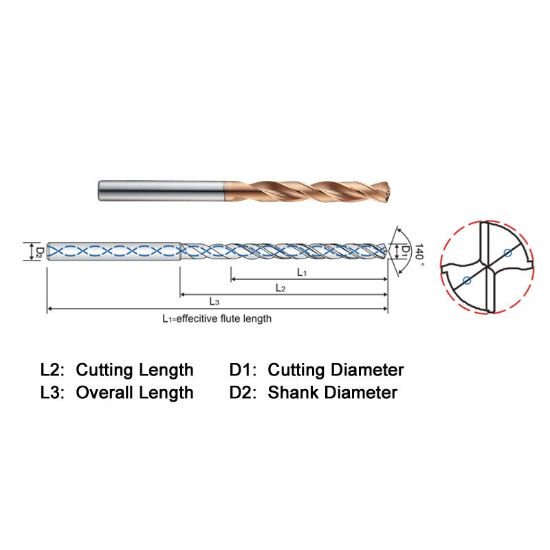

Picture of Widin HPI50508433 8.433mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin HPI50508433 8.433mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDHPI50508433
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$131.10
SKU: 1141756

Description

WIDIN HPI50508433 Carbide Drill 8.433MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0551 103.00MM
Flute Length 1.9290 49.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3937 10.00MM
Tool Dia 0.3320 8.43MM - Q
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.3320 8.43MM - Q
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
