Widin HPI505071 7.10mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDHPI505071
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$102.40
SKU: 1141738

Description

WIDIN HPI505071 Carbide Drill 7.10MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill

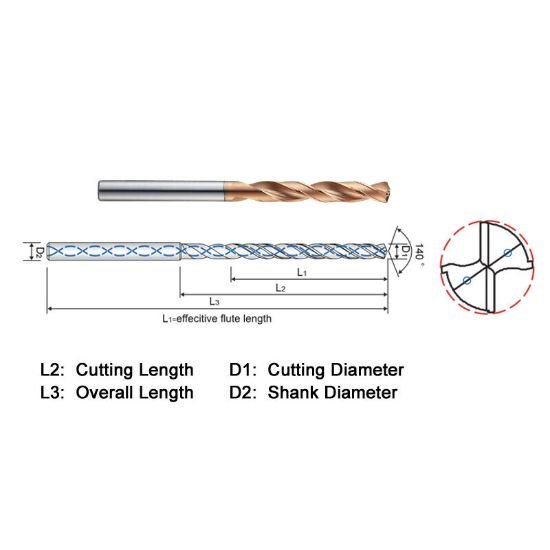

Dimensions & Sizing
Overall Length 3.5827 91.00MM
Flute Length 1.6930 43.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3150 8.00MM
Tool Dia 0.2795 7.10MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2795 7.10MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
