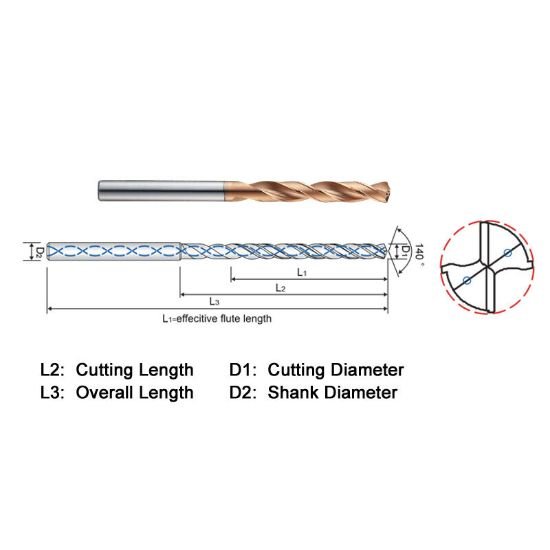

Picture of Widin HPI50506747 6.747mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin HPI50506747 6.747mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDHPI50506747
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$102.40
SKU: 1141733

Description

WIDIN HPI50506747 Carbide Drill 6.747MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.5827 91.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2656 6.75MM - 17/64
Flute Length 1.6930 43.00MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.2656 6.75MM - 17/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
