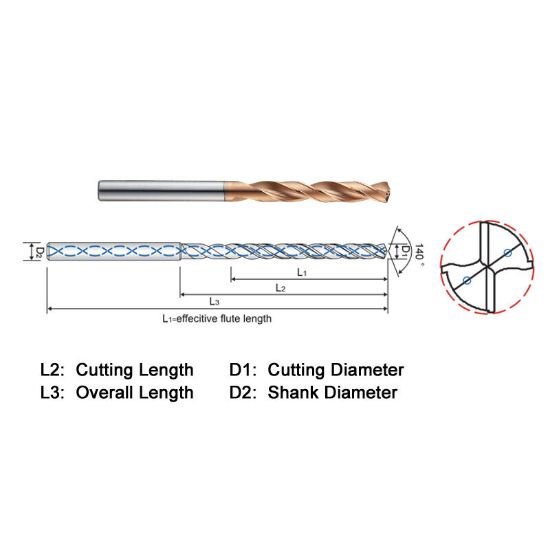

Picture of Widin HPI505065 6.50mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin HPI505065 6.50mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDHPI505065
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$102.40
SKU: 1141729

Description

WIDIN HPI505065 Carbide Drill 6.50MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.5827 91.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2559 6.50MM
Flute Length 1.6930 43.00MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.2559 6.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
