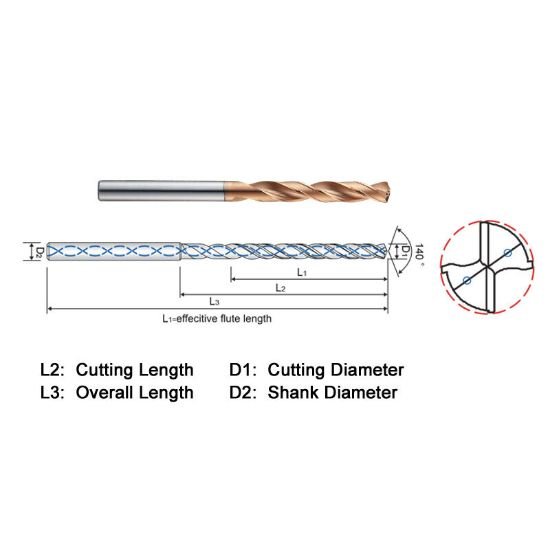

Picture of Widin HPI50504623 4.62mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin HPI50504623 4.62mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDHPI50504623
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$74.61
SKU: 1141704

Description

WIDIN HPI50504623 Carbide Drill 4.62MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.9134 74.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1820 4.62MM - #14
Flute Length 1.1420 29.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.1820 4.62MM - #14
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
