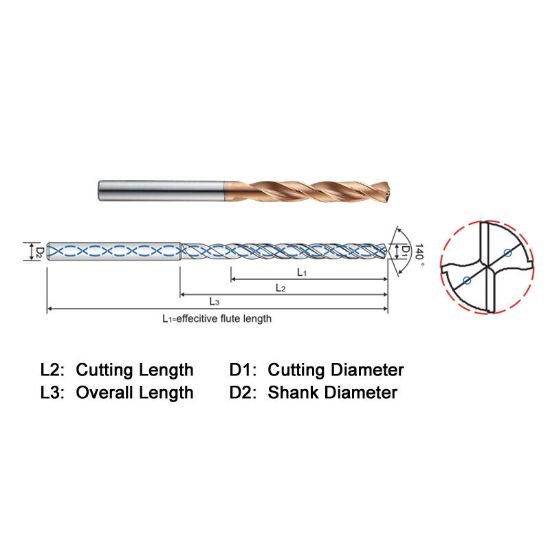

Picture of Widin HPI50503572 3.572mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin HPI50503572 3.572mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDHPI50503572
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$74.61
SKU: 1141692

Description

WIDIN HPI50503572 Carbide Drill 3.572MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.4016 61.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.1406 3.57MM - 9/64 - #28
Flute Length 0.9060 23.01MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
