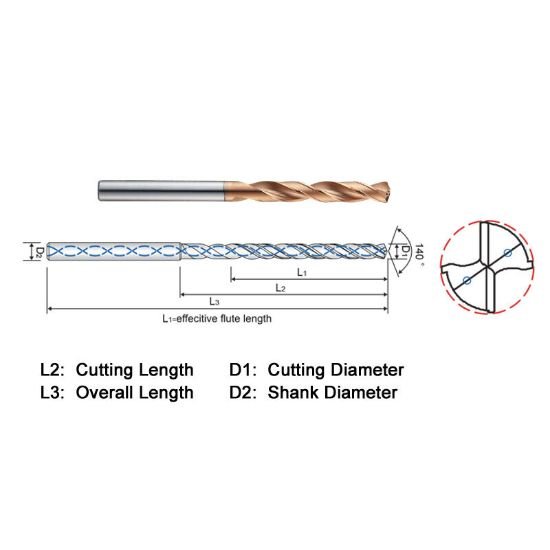

Picture of Widin HPI505032 3.20mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Widin HPI505032 3.20mm Dia 140° Point 2 Flute 5XD Drill Carbide Thru Coolant

Part Number: WIDHPI505032
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$72.33
SKU: 1144233

Description

WIDIN HPI505032 Carbide Drill 3.20MM DIA 140° Point 2 Flute 5XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.5984 66.00MM
Flute Length 0.9450 24.00MM
Dia Deep 5.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.2362 6.00MM
Tool Dia 0.1260 3.20MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.1260 3.20MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
