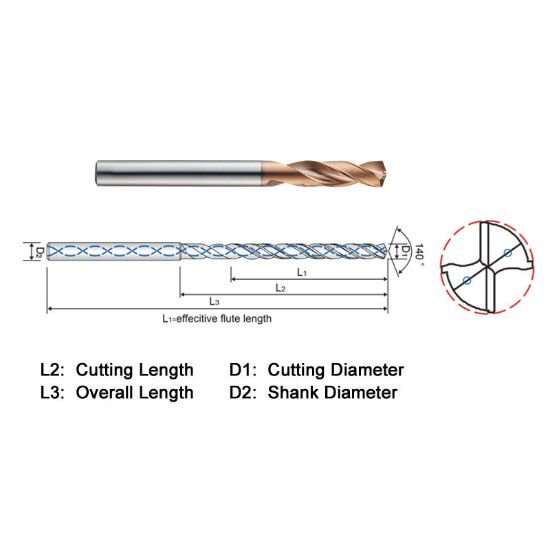

Picture of Widin HPI50309129 9.129mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin HPI50309129 9.129mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDHPI50309129
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$111.71
SKU: 1141633

Description

WIDIN HPI50309129 Carbide Drill 9.129MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.5039 89.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3594 9.13MM - 23/64
Flute Length 1.3780 35.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.3594 9.13MM - 23/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
