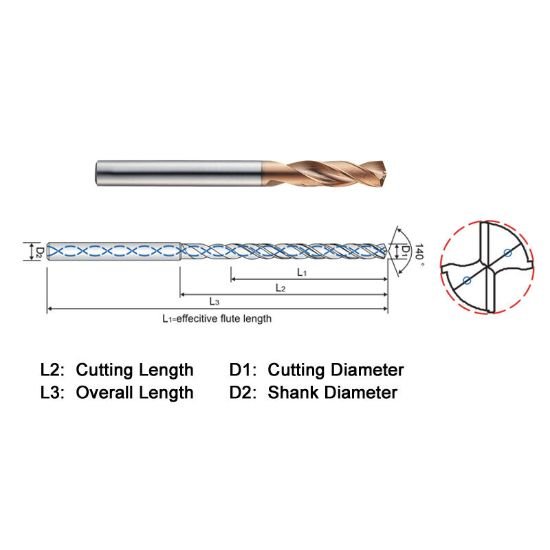

Picture of Widin HPI503083 8.30mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin HPI503083 8.30mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDHPI503083
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$111.71
SKU: 1141624

Description

WIDIN HPI503083 Carbide Drill 8.30MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.5039 89.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3268 8.30MM
Flute Length 1.3780 35.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.3268 8.30MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
