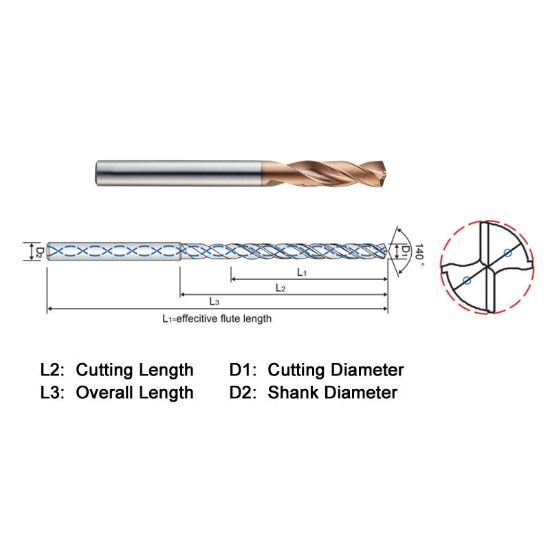

Picture of Widin HPI503064 6.4 Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin HPI503064 6.4 Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDHPI503064
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$76.84
SKU: 1144299

Description

WIDIN HPI503064 Carbide Drill 6.4 DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 3.1102 79.00MM
Flute Length 0.9450 24.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.3150 8.00MM
Tool Dia 0.2520 6.40MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.2520 6.40MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
