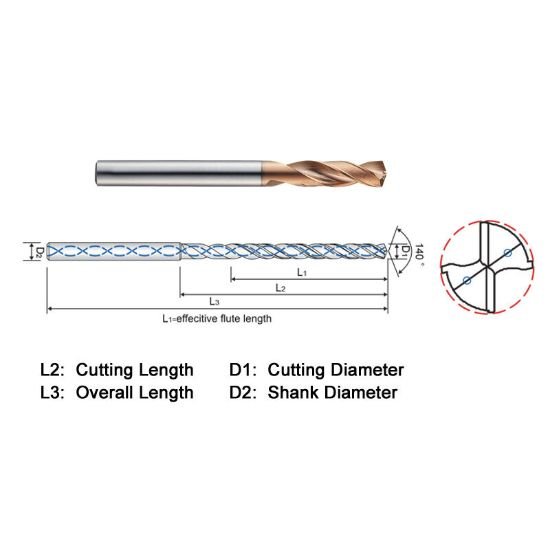

Picture of Widin HPI50303264 3.264mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Widin HPI50303264 3.264mm Dia 140° Point 2 Flute 3XD Drill Carbide Thru Coolant

Part Number: WIDHPI50303264
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$58.40
SKU: 1141580

Description

WIDIN HPI50303264 Carbide Drill 3.264MM DIA 140° Point 2 Flute 3XD Drill Coolant Thru TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.4409 62.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1285 3.26MM - #30
Flute Length 0.5510 14.00MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.1285 3.26MM - #30
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
