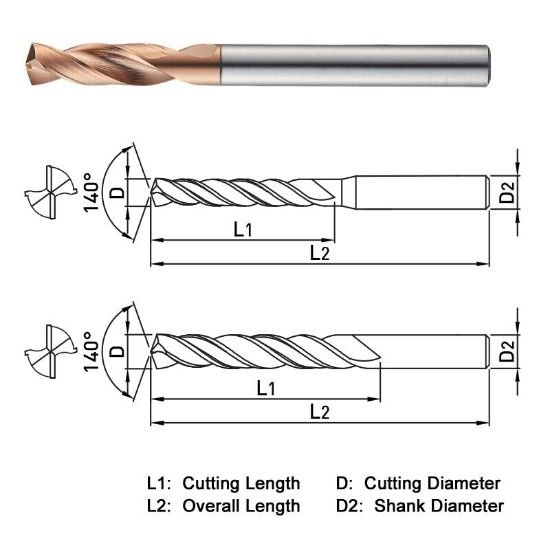

Picture of Widin HP503124 12.40mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin HP503124 12.40mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDHP503124
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$149.87
SKU: 1142503

Description

WIDIN HP503124 Carbide Drill 12.40MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.2126 107.00MM
Flute Length 1.6930 43.00MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.5512 14.00MM
Tool Dia 0.4882 12.40MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4882 12.40MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
