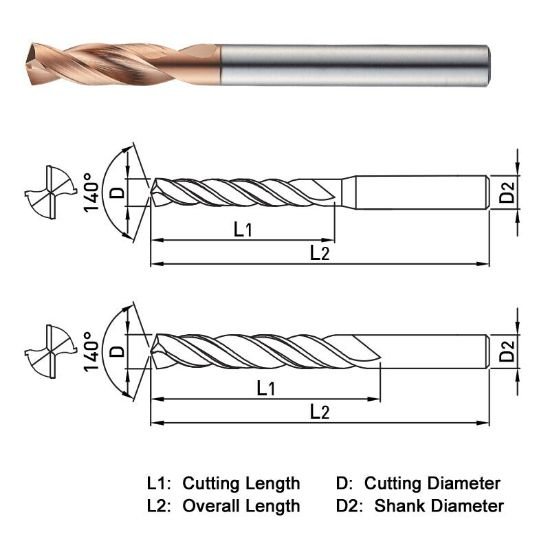

Picture of Widin HP503119 11.90mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin HP503119 11.90mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDHP503119
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$105.44
SKU: 1142498

Description

WIDIN HP503119 Carbide Drill 11.90MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Flute Length 1.5750 40.01MM
Dia Deep 3.0x Dia
Flutes/Inserts 2
Shank/Pilot Dia 0.4724 12.00MM
Tool Dia 0.4685 11.90MM
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Dia Min 0.4685 11.90MM
Cut Rating <60HRC Steel, Ductile Iron, Grey Iron, Stainless Steel
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN + HH
Tool Material Carbide
