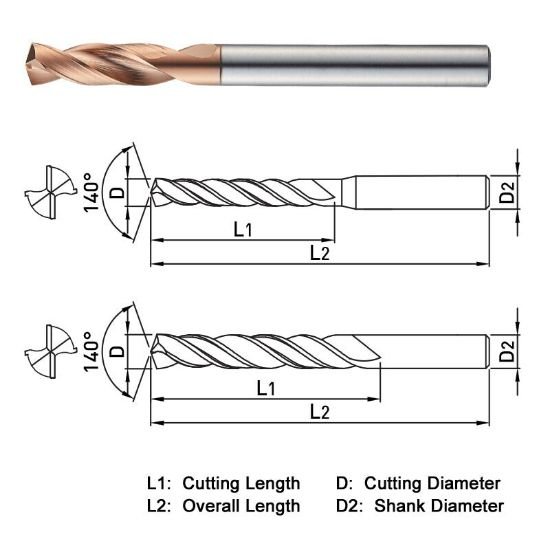

Picture of Widin HP503105 10.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin HP503105 10.50mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDHP503105
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$105.44
SKU: 1142484

Description

WIDIN HP503105 Carbide Drill 10.50MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 4.0157 102.00MM
Shank/Pilot Dia 0.4724 12.00MM
Flutes/Inserts 2
Tool Dia 0.4133 10.50MM
Flute Length 1.5750 40.01MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.4133 10.50MM - Z
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
