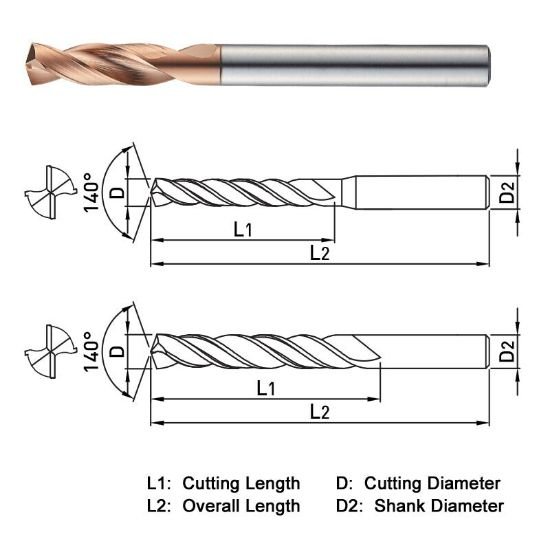

Picture of Widin HP503038 3.80mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Widin HP503038 3.80mm Dia 140° Point 2 Flute 3XD Drill Carbide Non Coolant

Part Number: WIDHP503038
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$47.33
SKU: 1142270

Description

WIDIN HP503038 Carbide Drill 3.80MM DIA 140° Point 2 Flute 3XD Drill Solid TiAlN + HH
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Non Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 2.5984 66.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1495 3.80MM - #25
Flute Length 0.6690 16.99MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, <60HRC Steel, Ductile Iron, Grey Iron
Cut Dia Min 0.1496 3.80MM - #25
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN + HH
