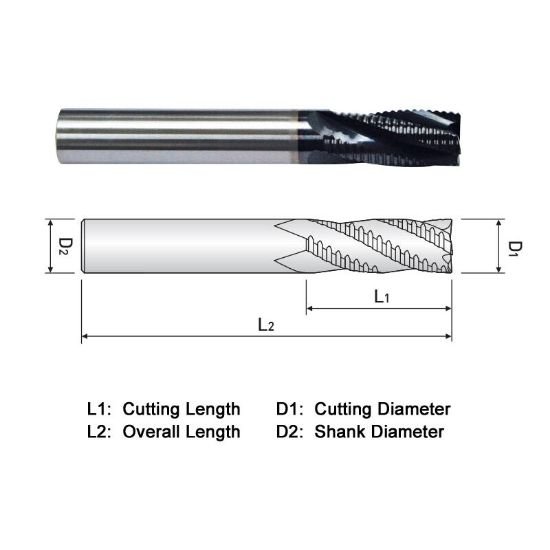

Picture of Widin FA504040 Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Carbide AlTiN Single End Square Sharp Z-ClassIC

Widin FA504040 Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Carbide AlTiN Single End Square Sharp Z-ClassIC

Part Number: WIDFA504040
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$137.58
SKU: 1220505

Description

WIDIN End Mill Carbide AlTiN Square Sharp Flutes 4 Single End Z-CLASSIC Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Rougher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.2500 31.75MM
Geometry & Angles
Helix Angle 20
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
