WIDIN EA304016S DIA 1/4 SH 0.2500 LOC 0.50 OAL2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp GENERAL PURPOSE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDEA304016S
Delivery date: 3-5 days
$10.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#15, Material#18, Material#2, Material#8
Performance Rating General Performance
Additional Key Information 1 End Mill
Additional Key Information 3 Standard Flute
Application Side Milling, Face Milling, Slot Milling
Additional Key Information 4 Standard Helix
Shipping State Illinois
Package Size 1
Sold by Pieces 1
Additional Key Information 2 Sharp
Uncategorized
Made In USA No

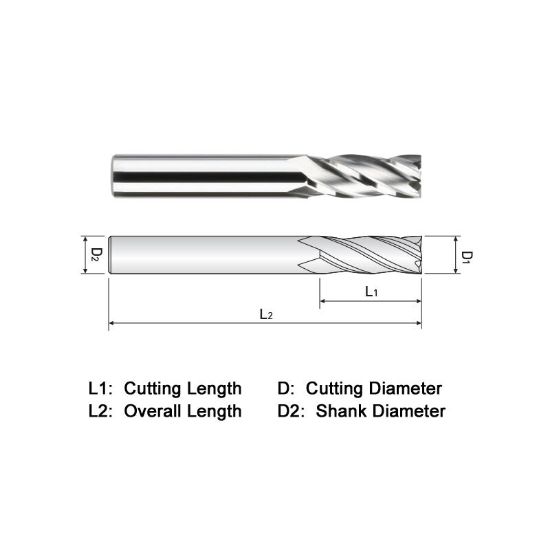

Dimensional Specifications
Machine Side CYLINDRICAL0.2500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Length Of Cut 0.5000 12.70MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Single/Double End Single End
Length Type Standard
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
