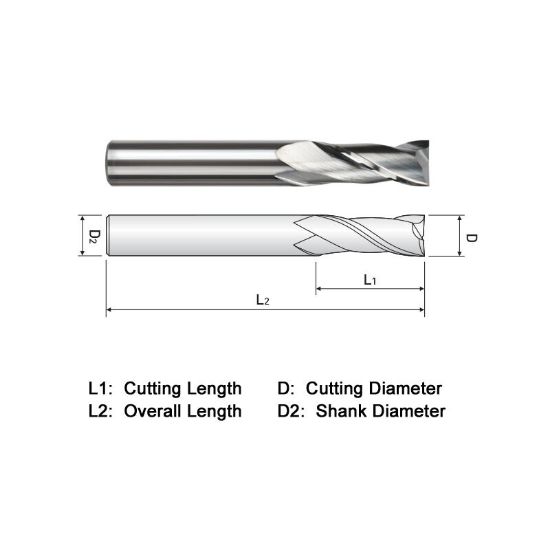

WIDIN EA302028 DIA 7/16 SH 0.4375 LOC 1.00 OAL2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp GENERAL PURPOSE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIN
SKU: WIDEA302028
Delivery date: 3-5 days
$23.86
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 Standard Helix
Material # Material#15, Material#18, Material#2, Material#8
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Sold by Pieces 1
Additional Key Information 1 End Mill
Additional Key Information 2 Sharp
Performance Rating General Performance
Additional Key Information 3 Standard Flute
Shipping State Illinois
Uncategorized
Made In USA No
Dimensional Specifications
Overall Len 2.7500 69.85MM
Machine Side CYLINDRICAL0.4375
Flutes/Inserts 2
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Helix Angle 30°
Machine Side Connection Size 0.4375 11.11MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
End Of Tool Shape Square
Cutter Dia 0.4375 11.11MM - 7/16
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
