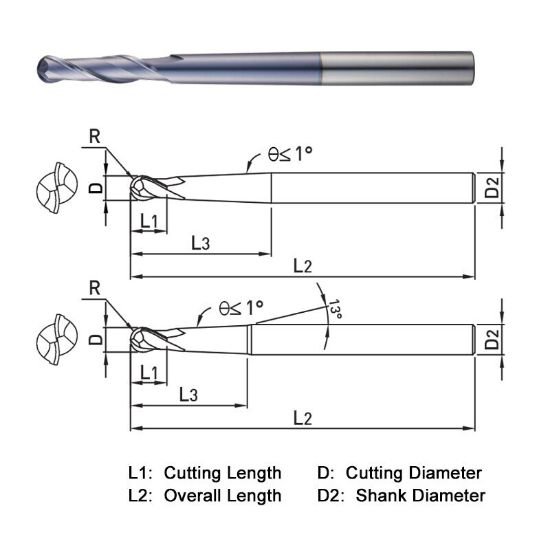

Picture of Widin DB552120 Dia 12mm SH 0.6299 LOC 1.9685 OAL 7.8740 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DB552120 Dia 12mm SH 0.6299 LOC 1.9685 OAL 7.8740 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDB552120
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$353.76
SKU: 1220392

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.4724 12.00MM
Length Of Cut 1.9685 50.00MM
Neck Length 3.1496 80.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
