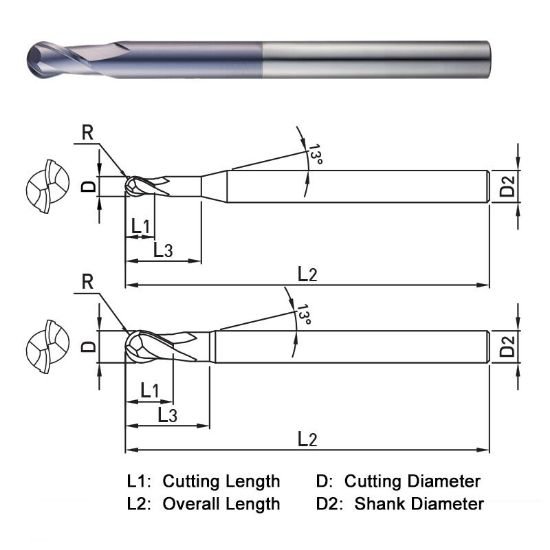

Picture of Widin DA522020 Dia 5/8 SH 0.6250 LOC 1.2500 OAL 5.50 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Widin DA522020 Dia 5/8 SH 0.6250 LOC 1.2500 OAL 5.50 End Mill Standard Helix Carbide AlTiN Single End Ball NoseBall Z-ClassIC

Part Number: WIDDA522020
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$206.97
SKU: 1220195

Description

WIDIN End Mill Carbide AlTiN Ball Nose 2 Flute Single End Z-CLASSIC
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.5000 139.70MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.2500 31.75MM
Neck Length 2.0000 50.80MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Gray Iron, <55HRC Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
