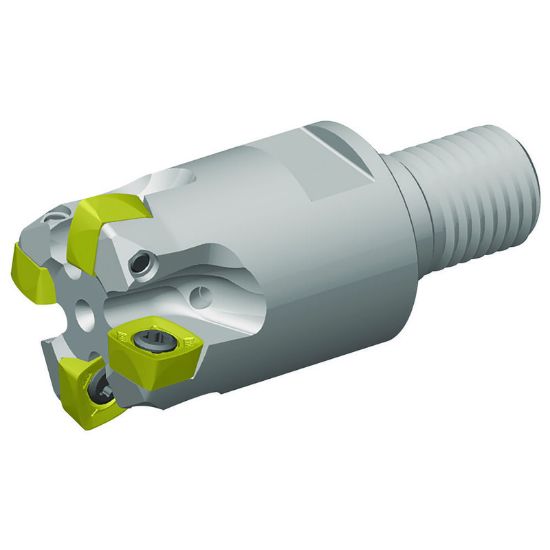

Picture of WIDIA/KENNAMETAL VXF035Z04M16XD09 Milling Cutter 1.309 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VXF035Z04M16XD09 Milling Cutter 1.309 Cutter Diameter Screw On M16

ANSI: VXF035Z04M16XD09

ISO: VXF035Z04M16XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6597734
Delivery date: 3-5 days
$376.87
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Sold by Pieces 1
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Additional Key Information 1 Feed Mill
Package Size 1
Additional Key Information 2 Milling Cutter
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Uncategorized
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.0591
Flutes/Inserts 4
Cut Dia Min 0.8381 21.29MM
Machine Side SCREWM16
Overall Len 2.6575 67.50MM
Insert Size Ic 904
Cutter Dia 1.3095 33.26MM
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Insert Style XD
Max Ramp Angle 1.33°
Max RPM 37500
