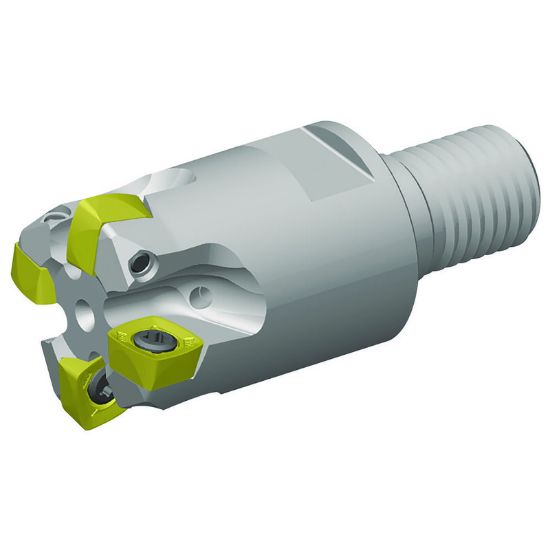

Picture of WIDIA/KENNAMETAL VXF032Z03M16XD09 Milling Cutter 1.191 Cutter Diameter Screw On M16

WIDIA/KENNAMETAL VXF032Z03M16XD09 Milling Cutter 1.191 Cutter Diameter Screw On M16

ANSI: VXF032Z03M16XD09

ISO: VXF032Z03M16XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: WID6597732
Delivery date: 3-5 days
$359.01
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Insert Application General Purpose
Sold by Pieces 1
Additional Key Information 1 Feed Mill
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Additional Key Information 2 Milling Cutter
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side SCREWM16
Overall Len 2.6575 67.50MM
Depth Of Cut Max 0.0591
Cut Dia Min 0.7204 18.30MM
Tool Material Steel
Cutter Dia 1.1914 30.26MM
Machine Side Connection Type Screw On
Insert Size Ic 904
Flutes/Inserts 3
Machine Side Connection Size M16
Cutting & Machining Properties
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Max RPM 40500
Max Ramp Angle 1.50°
