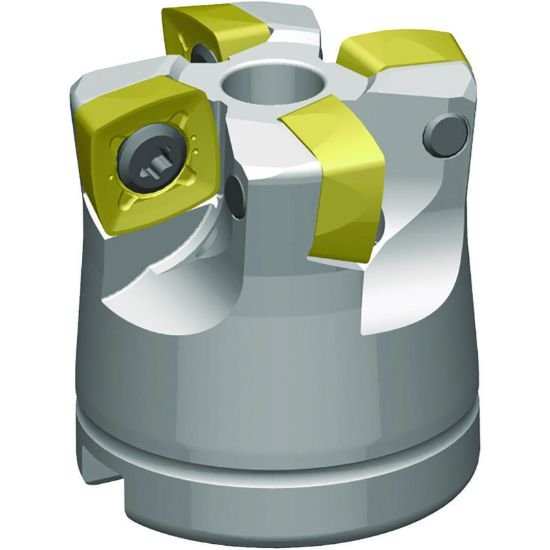

Picture of Widia/Kennametal VXF500Z08S150XD12 Milling Cutter 4.866 Cutter Diameter Face Mill 1.500

Widia/Kennametal VXF500Z08S150XD12 Milling Cutter 4.866 Cutter Diameter Face Mill 1.500

Part Number: WID6596781 ISO: VXF500Z08S150XD12 ANSI:VXF500Z08S150XD12
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019496
Vendor: Sussex Tool and Supply
$1,110.77

Description

WIDIA 6596781 Square Feed Mill SHELL1.5000 Positive 4.8661 123.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 2.4803 63.00MM
Flutes/Inserts 8
Tool Dia 4.8661 123.60MM
Insert Size Ic 1205
Performance & Capacity
Cut Dia Min 4.2831 108.79MM
Depth Of Cut Max 0.0984
Max RPM 13000
Max Ramp Angle 0.24°
Materials & Finish
Tool Material Steel
