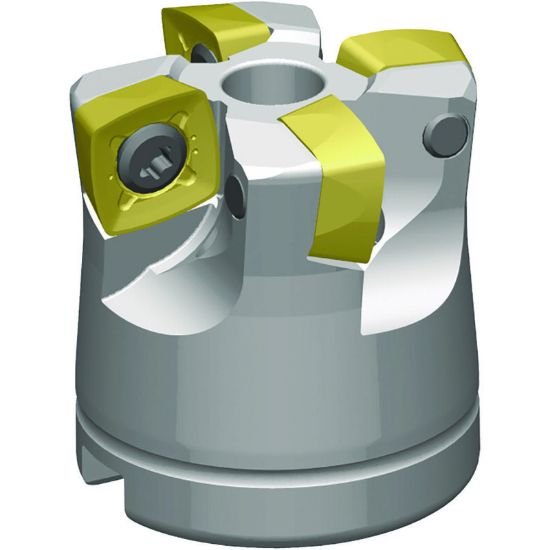

Picture of Widia/Kennametal VXF400Z09S125XD12 Milling Cutter 3.881 Cutter Diameter Face Mill 1.250

Widia/Kennametal VXF400Z09S125XD12 Milling Cutter 3.881 Cutter Diameter Face Mill 1.250

Part Number: WID6596780 ISO: VXF400Z09S125XD12 ANSI:VXF400Z09S125XD12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019495
Vendor: Sussex Tool and Supply
$886.51

Description

WIDIA 6596780 Square Feed Mill SHELL1.2500 Positive 3.8819 98.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Flutes/Inserts 9
Tool Dia 3.8819 98.60MM
Insert Size Ic 1205
Performance & Capacity
Cut Dia Min 3.2830 83.39MM
Depth Of Cut Max 0.0984
Max RPM 14500
Max Ramp Angle 0.31°
Materials & Finish
Tool Material Steel
