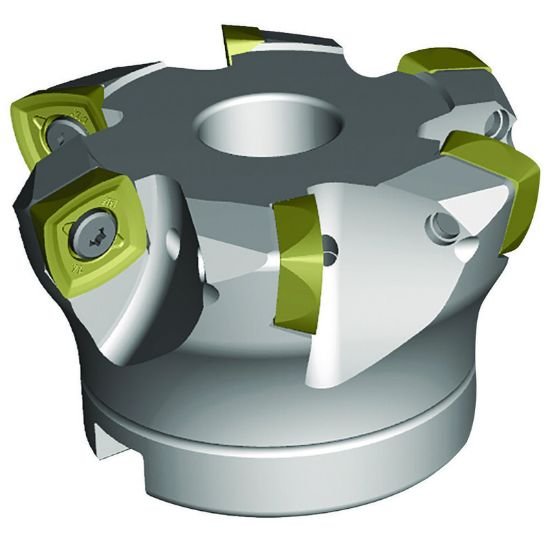

Picture of Widia/Kennametal VXF400Z07S150XE16 Milling Cutter 3.858 Cutter Diameter Face Mill 1.500

Widia/Kennametal VXF400Z07S150XE16 Milling Cutter 3.858 Cutter Diameter Face Mill 1.500

Part Number: WID6597788 ISO: VXF400Z07S150XE16 ANSI:VXF400Z07S150XE16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019546
Vendor: Sussex Tool and Supply
$840.07

Description

WIDIA 6597788 Square Feed Mill SHELL1.5000 Positive 3.8583 98.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 2.4800 62.99MM
Flutes/Inserts 7
Tool Dia 3.8583 98.00MM
Insert Size Ic 1605
Performance & Capacity
Cut Dia Min 3.0999 78.74MM
Depth Of Cut Max 0.1378
Max RPM 15800
Max Ramp Angle 0.51°
Materials & Finish
Tool Material Steel
