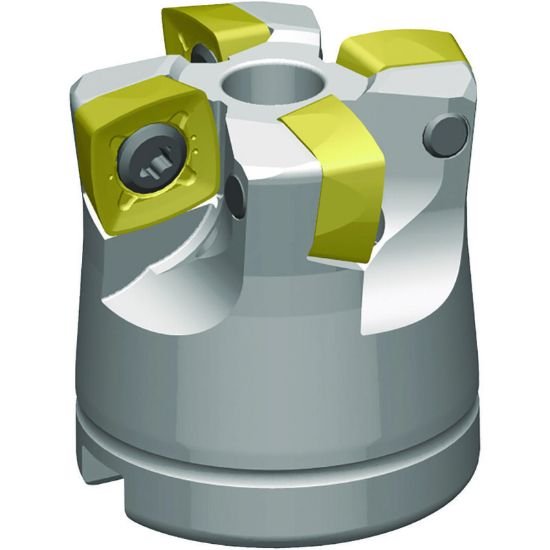

Picture of Widia/Kennametal VXF300Z08S100XD12 Milling Cutter 2.881 Cutter Diameter Face Mill 1.000

Widia/Kennametal VXF300Z08S100XD12 Milling Cutter 2.881 Cutter Diameter Face Mill 1.000

Part Number: WID6596769 ISO: VXF300Z08S100XD12 ANSI:VXF300Z08S100XD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019493
Vendor: Sussex Tool and Supply
$693.02
WIDIA 6596769 Square Feed Mill SHELL1.0000 Positive 2.8819 73.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0000 25.40MM
Overall Length 1.9685 50.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 8
Tool Dia 2.8819 73.20MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 1205
Cut Dia Min 2.2834 58.00MM
Hand Right Hand
Depth Of Cut Max 0.0984
Max RPM 17500
Max Ramp Angle 0.45°
