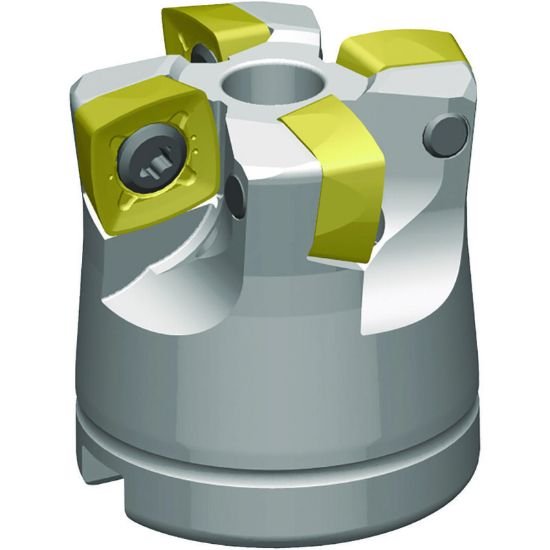

Picture of Widia/Kennametal VXF300Z05S100XD12 Milling Cutter 2.881 Cutter Diameter Face Mill 1.000

Widia/Kennametal VXF300Z05S100XD12 Milling Cutter 2.881 Cutter Diameter Face Mill 1.000

Part Number: WID6596768 ISO: VXF300Z05S100XD12 ANSI:VXF300Z05S100XD12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019492
Vendor: Sussex Tool and Supply
$702.04

Description

WIDIA 6596768 Square Feed Mill SHELL1.0000 Positive 2.8819 73.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Flutes/Inserts 5
Tool Dia 2.8819 73.20MM
Insert Size Ic 1205
Performance & Capacity
Cut Dia Min 2.2834 58.00MM
Depth Of Cut Max 0.0984
Max RPM 17500
Max Ramp Angle 0.45°
Materials & Finish
Tool Material Steel
