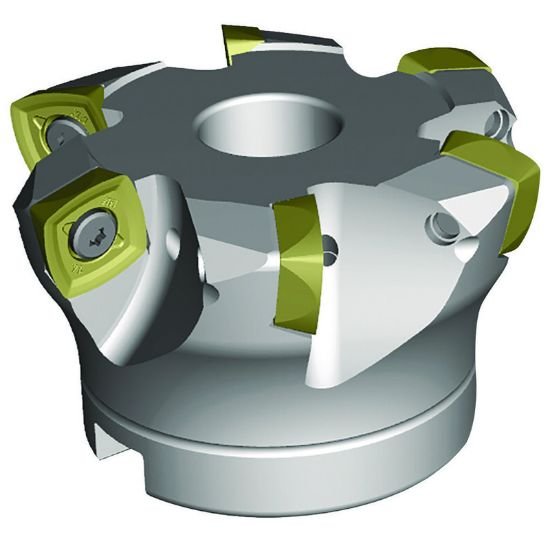

Picture of Widia/Kennametal VXF250Z05S100XE16 Milling Cutter 2.358 Cutter Diameter Face Mill 1.000

Widia/Kennametal VXF250Z05S100XE16 Milling Cutter 2.358 Cutter Diameter Face Mill 1.000

Part Number: WID6597784 ISO: VXF250Z05S100XE16 ANSI:VXF250Z05S100XE16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019544
Vendor: Sussex Tool and Supply
$624.40

Description

WIDIA 6597784 Square Feed Mill SHELL1.0000 Positive 2.3583 59.90MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Flutes/Inserts 5
Tool Dia 2.3583 59.90MM
Insert Size Ic 1605
Performance & Capacity
Cut Dia Min 1.6024 40.70MM
Depth Of Cut Max 0.1378
Max RPM 21200
Max Ramp Angle 1.00°
Materials & Finish
Tool Material Steel
