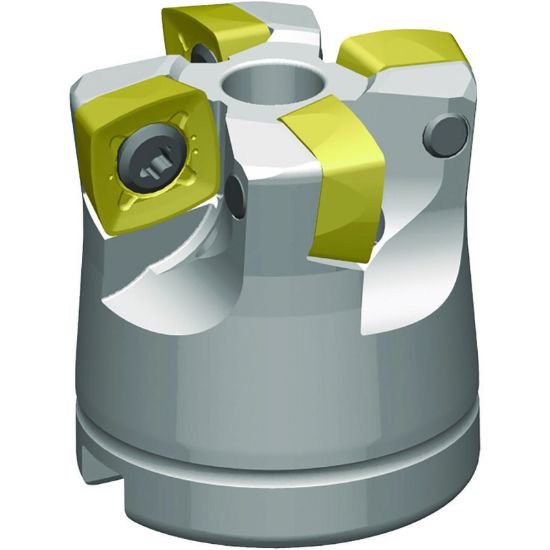

Picture of Widia/Kennametal VXF250Z05S100XD12 Milling Cutter 2.389 Cutter Diameter Face Mill 1.000

Widia/Kennametal VXF250Z05S100XD12 Milling Cutter 2.389 Cutter Diameter Face Mill 1.000

Part Number: WID6596766 ISO: VXF250Z05S100XD12 ANSI:VXF250Z05S100XD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019490
Vendor: Sussex Tool and Supply
$560.24
WIDIA 6596766 Square Feed Mill SHELL1.0000 Positive 2.3898 60.70MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0000 25.40MM
Overall Length 1.5748 40.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 2.3898 60.70MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 1205
Cut Dia Min 1.7836 45.30MM
Hand Right Hand
Depth Of Cut Max 0.0984
Max RPM 19500
Max Ramp Angle 0.60°
