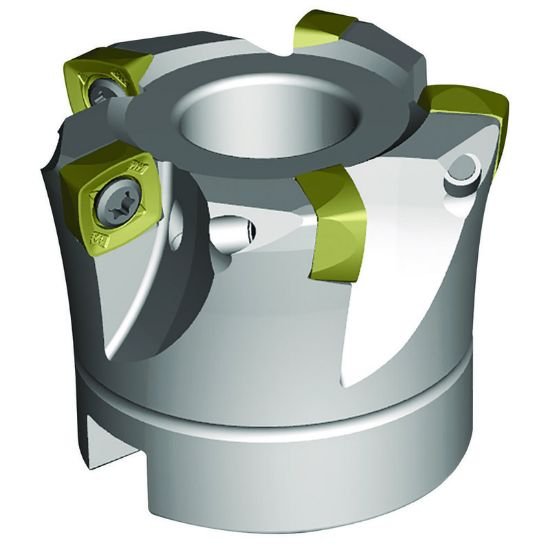

Picture of Widia/Kennametal VXF200Z06S075XD09 Milling Cutter 1.915 Cutter Diameter Face Mill 0.750

Widia/Kennametal VXF200Z06S075XD09 Milling Cutter 1.915 Cutter Diameter Face Mill 0.750

Part Number: WID6597775 ISO: VXF200Z06S075XD09 ANSI:VXF200Z06S075XD09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019537
Vendor: Sussex Tool and Supply
$608.48

Description

WIDIA 6597775 Square Feed Mill SHELL0.7500 Positive 1.9158 48.66MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.5748 40.00MM
Flutes/Inserts 6
Tool Dia 1.9158 48.66MM
Insert Size Ic 904
Performance & Capacity
Cut Dia Min 1.4581 37.04MM
Depth Of Cut Max 0.0590
Max RPM 30000
Max Ramp Angle 0.70°
Materials & Finish
Tool Material Steel
