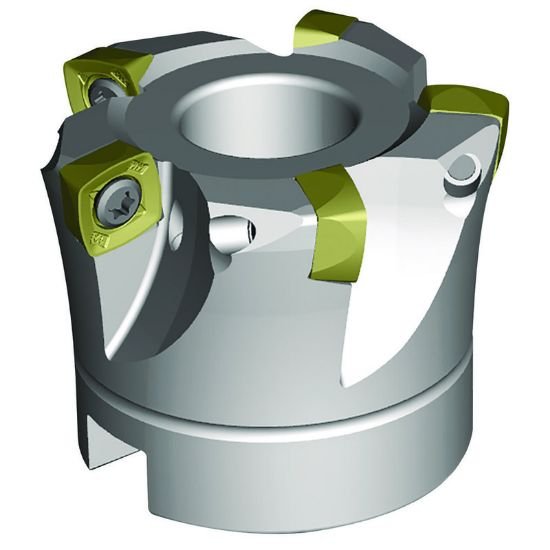

Picture of Widia/Kennametal VXF200Z05S075XD09 Milling Cutter 1.915 Cutter Diameter Face Mill 0.750

Widia/Kennametal VXF200Z05S075XD09 Milling Cutter 1.915 Cutter Diameter Face Mill 0.750

Part Number: WID6597774 ISO: VXF200Z05S075XD09 ANSI:VXF200Z05S075XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019536
Vendor: Sussex Tool and Supply
$525.12
WIDIA 6597774 Square Feed Mill SHELL0.7500 Positive 1.9158 48.66MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.7500 19.05MM
Overall Length 1.5748 40.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 1.9158 48.66MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 904
Cut Dia Min 1.4581 37.04MM
Hand Right Hand
Depth Of Cut Max 0.0590
Max RPM 30000
Max Ramp Angle 0.70°
