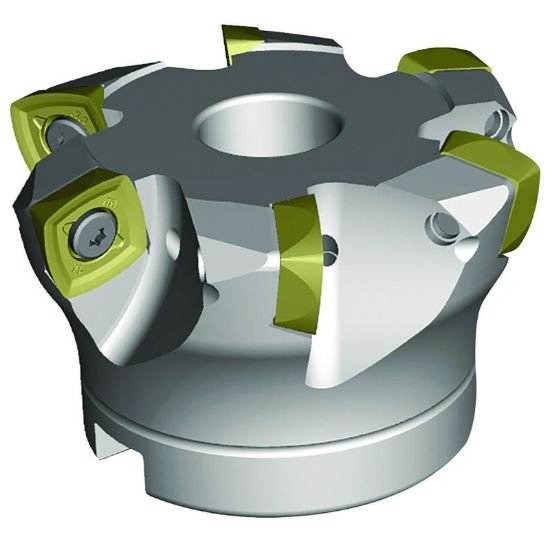

Picture of Widia/Kennametal VXF200Z04S075XE16 Milling Cutter 1.854 Cutter Diameter Face Mill 0.750

Widia/Kennametal VXF200Z04S075XE16 Milling Cutter 1.854 Cutter Diameter Face Mill 0.750

Part Number: WID6597783 ISO: VXF200Z04S075XE16 ANSI:VXF200Z04S075XE16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019543
Vendor: Sussex Tool and Supply
$562.01

Description

WIDIA 6597783 Square Feed Mill SHELL0.7500 Positive 1.8543 47.10MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.7716 45.00MM
Flutes/Inserts 4
Tool Dia 1.8543 47.10MM
Insert Size Ic 1605
Performance & Capacity
Cut Dia Min 1.1034 28.03MM
Depth Of Cut Max 0.1378
Max RPM 24800
Max Ramp Angle 1.36°
Materials & Finish
Tool Material Steel
