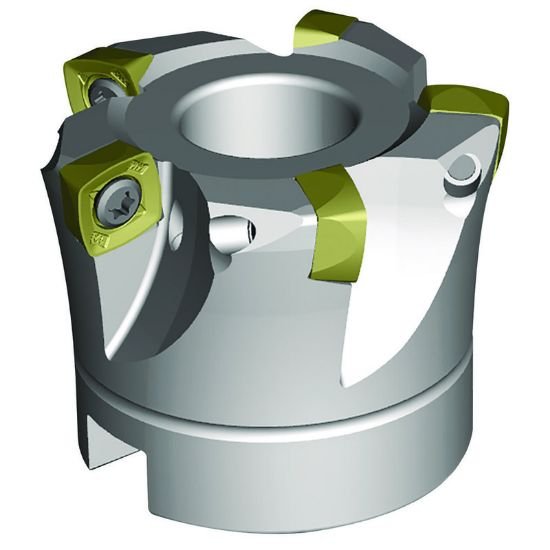

Picture of Widia/Kennametal VXF150Z05S050XD09 Milling Cutter 1.415 Cutter Diameter Face Mill 0.500

Widia/Kennametal VXF150Z05S050XD09 Milling Cutter 1.415 Cutter Diameter Face Mill 0.500

Part Number: WID6597773 ISO: VXF150Z05S050XD09 ANSI:VXF150Z05S050XD09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019535
Vendor: Sussex Tool and Supply
$506.96

Description

WIDIA 6597773 Square Feed Mill SHELL0.5000 Positive 1.4158 35.96MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.2600 32.00MM
Flutes/Inserts 5
Tool Dia 1.4158 35.96MM
Insert Size Ic 904
Performance & Capacity
Cut Dia Min 0.9599 24.38MM
Depth Of Cut Max 0.0590
Max RPM 36000
Max Ramp Angle 1.10°
Materials & Finish
Tool Material Steel
