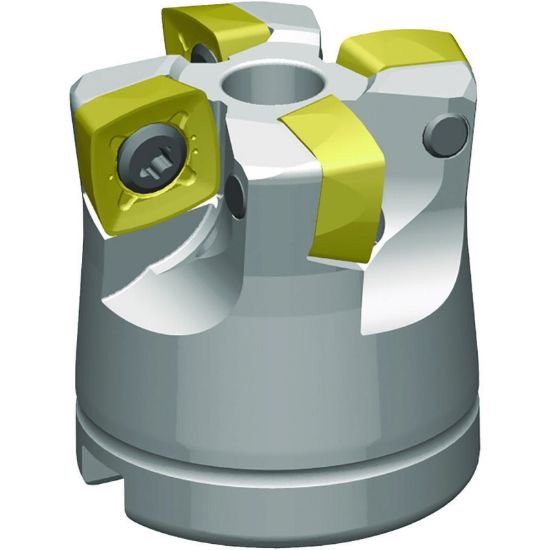

Picture of Widia/Kennametal VXF150Z04S075XD12 Milling Cutter 1.429 Cutter Diameter Face Mill 0.750

Widia/Kennametal VXF150Z04S075XD12 Milling Cutter 1.429 Cutter Diameter Face Mill 0.750

Part Number: WID6596763 ISO: VXF150Z04S075XD12 ANSI:VXF150Z04S075XD12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019487
Vendor: Sussex Tool and Supply
$434.02
WIDIA 6596763 Square Feed Mill SHELL0.7500 Positive 1.4291 36.30MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.7500 19.05MM
Overall Length 1.5748 40.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 1.4291 36.30MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 1205
Cut Dia Min 0.7853 19.95MM
Hand Right Hand
Depth Of Cut Max 0.0984
Max RPM 27500
Max Ramp Angle 0.95°
