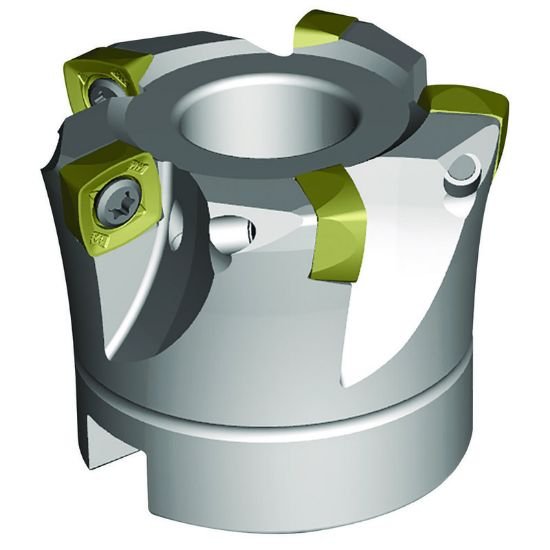

Picture of Widia/Kennametal VXF150Z04S050XD09 Milling Cutter 1.415 Cutter Diameter Face Mill 0.500

Widia/Kennametal VXF150Z04S050XD09 Milling Cutter 1.415 Cutter Diameter Face Mill 0.500

Part Number: WID6597772 ISO: VXF150Z04S050XD09 ANSI:VXF150Z04S050XD09

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1019534
Vendor: Sussex Tool and Supply
$434.02
WIDIA 6597772 Square Feed Mill SHELL0.5000 Positive 1.4158 35.96MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 0.5000 12.70MM
Overall Length 1.2600 32.00MM
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 1.4158 35.96MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 904
Cut Dia Min 0.9599 24.38MM
Hand Right Hand
Depth Of Cut Max 0.0590
Max RPM 36000
Max Ramp Angle 1.10°
