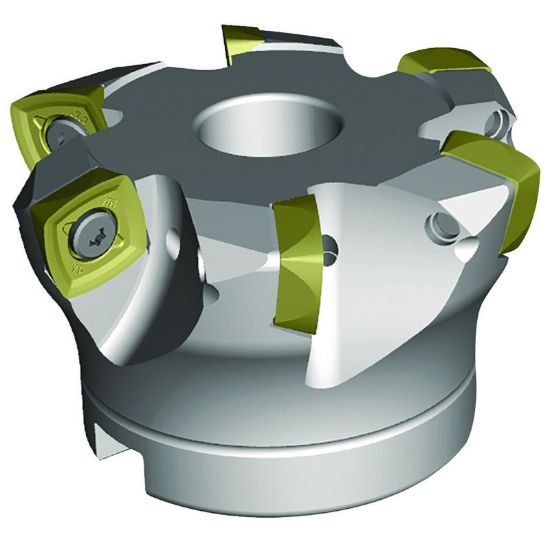

Picture of Widia/Kennametal VXF100Z08S32XE16 Milling Cutter 3.795 Cutter Diameter Face Mill 1.259

Widia/Kennametal VXF100Z08S32XE16 Milling Cutter 3.795 Cutter Diameter Face Mill 1.259

Part Number: WID6597779 ISO: VXF100Z08S32XE16 ANSI:VXF100Z08S32XE16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019541
Vendor: Sussex Tool and Supply
$863.92

Description

WIDIA 6597779 Square Feed Mill SHELL1.2598 Positive 3.7953 96.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.9686 50.00MM
Flutes/Inserts 8
Tool Dia 3.7953 96.40MM
Insert Size Ic 1605
Performance & Capacity
Cut Dia Min 3.0369 77.14MM
Depth Of Cut Max 0.1378
Max RPM 16000
Max Ramp Angle 0.42°
Materials & Finish
Tool Material Steel
