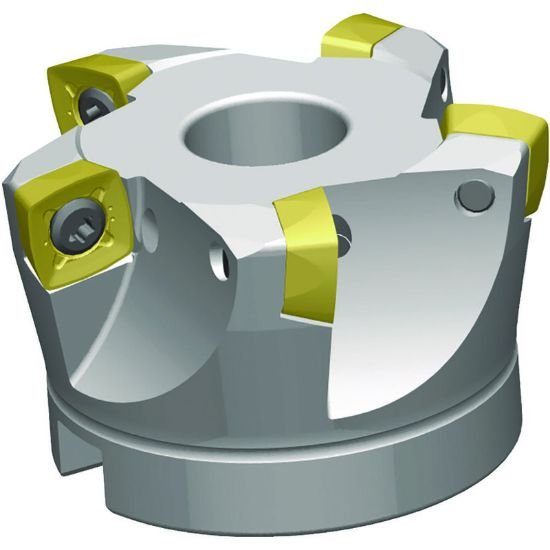

Picture of Widia/Kennametal VXF100Z07S32XD12 Milling Cutter 3.815 Cutter Diameter Face Mill 1.259

Widia/Kennametal VXF100Z07S32XD12 Milling Cutter 3.815 Cutter Diameter Face Mill 1.259

Part Number: WID6596734 ISO: VXF100Z07S32XD12 ANSI:VXF100Z07S32XD12
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019486
Vendor: Sussex Tool and Supply
$840.07

Description

WIDIA 6596734 Square Feed Mill SHELL1.2598 Positive 3.8150 96.90MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Flutes/Inserts 7
Tool Dia 3.8150 96.90MM
Insert Size Ic 1205
Performance & Capacity
Cut Dia Min 3.2203 81.80MM
Depth Of Cut Max 0.0974
Max RPM 15000
Max Ramp Angle 0.30°
Materials & Finish
Tool Material Steel
