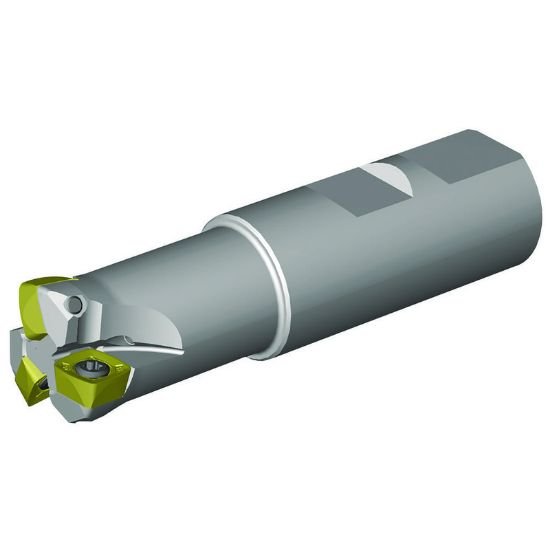

Picture of Widia/Kennametal VXF100Z03W100XD09 Milling Cutter 0.943 Cutter Diameter Cylindrical 1.000

Widia/Kennametal VXF100Z03W100XD09 Milling Cutter 0.943 Cutter Diameter Cylindrical 1.000

Part Number: WID6597756 ISO: VXF100Z03W100XD09 ANSI:VXF100Z03W100XD09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019528
Vendor: Sussex Tool and Supply
$438.60

Description

WIDIA 6597756 Square Feed Mill End Mill Cylindrical 1.0000 Positive 0.9433 23.96MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 3.8560 97.94MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 0.9433 23.96MM
Insert Size Ic 904
Neck Dia 0.8504
Performance & Capacity
Cut Dia Min 0.4618 11.73MM
Depth Of Cut Max 0.0591
Max RPM 48000
Max Ramp Angle 2.70°
Materials & Finish
Tool Material Steel
