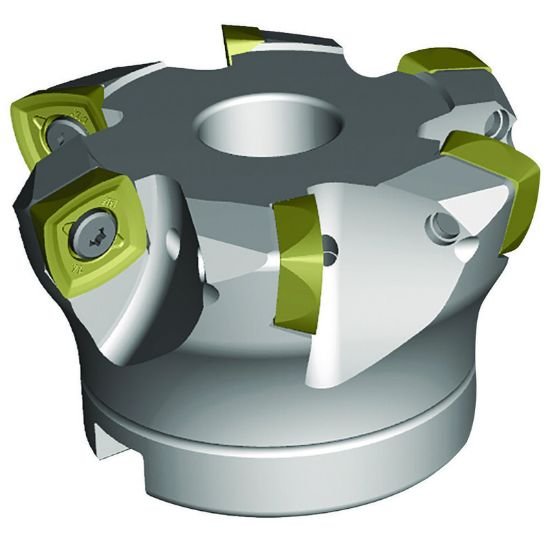

Picture of Widia/Kennametal VXF080Z06S27XE16 Milling Cutter 3.007 Cutter Diameter Face Mill 1.063

Widia/Kennametal VXF080Z06S27XE16 Milling Cutter 3.007 Cutter Diameter Face Mill 1.063

Part Number: WID6597778 ISO: VXF080Z06S27XE16 ANSI:VXF080Z06S27XE16
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1019540
Vendor: Sussex Tool and Supply
$725.92

Description

WIDIA 6597778 Square Feed Mill SHELL1.0630 Positive 3.0079 76.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XE
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 1.9686 50.00MM
Flutes/Inserts 6
Tool Dia 3.0079 76.40MM
Insert Size Ic 1605
Performance & Capacity
Cut Dia Min 2.2515 57.19MM
Depth Of Cut Max 0.1378
Max RPM 18300
Max Ramp Angle 0.58°
Materials & Finish
Tool Material Steel
