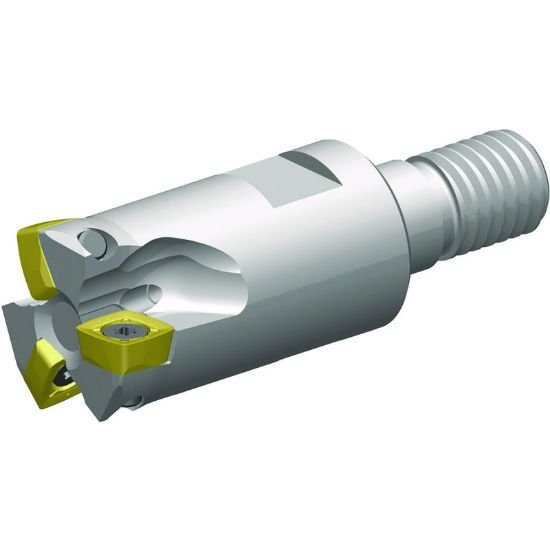

Picture of Widia/Kennametal VXF075Z03M10XP07 Milling Cutter 0.715 Cutter Diameter Screw On M10

Widia/Kennametal VXF075Z03M10XP07 Milling Cutter 0.715 Cutter Diameter Screw On M10

Part Number: WID6712878 ISO: VXF075Z03M10XP07 ANSI:VXF075Z03M10XP07
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$345.71
SKU: 1019548

Description

WIDIA 6712878 Square Feed Mill Thread On SCREWM10 Positive 0.7154 18.17MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XP
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Hand Right Hand
Dimensions & Sizing
Overall Length 2.1653 55.00MM
Flutes/Inserts 3
Tool Dia 0.7154 18.17MM
Insert Size Ic 703
Performance & Capacity
Cut Dia Min 0.3841 9.76MM
Depth Of Cut Max 0.0354
Max RPM 57000
Max Ramp Angle 6.74°
Materials & Finish
Tool Material Steel
